Easy
15-30 minutes
This item has been sourced from the original manufacturer and is intended to be used with trimmers, edgers, and blowers from Echo. The metal spring is part of the recoil starter assembly and is used to rewind the starter rope after it has been pulled to start the motor. This item is sold as an individual replacement part.
Starter Rewind Spring P022019680
OEM part for: Shindaiwa
Part Number: P022019680
$9.73
In Stock
Order within the next 12 hours and your part ships today!
Jump To:
Frequently Purchased Together ?
Compatibility
This Starter Rewind Spring will fit the following 1093 machines. Confirm this part works with your model, and view the detailed model diagrams and repair help we have to offer.
Shindaiwa
Show More Compatible ModelsThis item works with the following types of products:
- Hedge Trimmer Parts
- Trimmer Parts
- Pump Parts
This part replaces obsolete part #: 177220-42030, 17722042030, A504000100, 70030-75130
Repair Videos ?

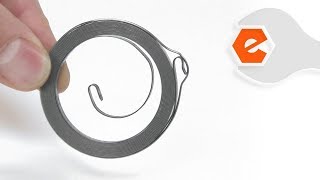

Watch the Repair Video for
Starter Rewind Spring
Articles:
|
Filthy Filters? This article will show you how to install a filter kit on an Echo SRM-225 trimmer....
May 27, 2015
|
Customer Part Reviews ?
Average Rating (out of 5):
Click to filter by ratings:
5 stars
5
4 stars
1
3 stars
0
2 stars
0
1 stars
0
< PREV
- 1
Right part, quick repair
E replacement parts always has the right parts even for my 20yr old leaf blower.
Guest -
June 17, 2023
Verified Purchase
Great part
Was correct part and received it fast
phillip -
November 22, 2022
Verified Purchase
great parts
easy to install and work just great now my 21 year old ECHO SRM2100 will keep on going
Guest -
November 4, 2020
Verified Purchase
Easy and fast
I come from France, fast sending and good prices.
iGlobal -
October 10, 2020
Verified Purchase
Easy repair,quick delivery,good prices
The right part,at a great price,and quick delivery... thanks
Guest -
August 20, 2019
Verified Purchase
Spring
Part replacement is correct but replacing it isn’t as easy as seen on the different websites especially if the spring gets totally released before install. Better to buy the entire assembly than to fight with rewinding the spring.
Guest -
August 30, 2019
Verified Purchase
Questions & Answers ?
Our customer Service team is at the ready daily to answer your part and product questions.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Does this fit my product?Questions & Answers for Starter Rewind Spring
No questions have been asked yet
Customer Repair Instructions ?
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
Broken recoil starter
Maurice - March 18, 2016
👍 11 of 14 people found this instruction helpful
Tool Type
Blower
Difficulty
Easy
Time
Less than 15 minutes
Tools Used
, Allen T handle wrench
Parts Used
Placed new recoil pull starter assy in place and installed the 4 mounting screws
Did you find this story helpful?
Thanks for voting and helping fellow customers!
spring broken
robert - June 28, 2021
Tool Type
Hedge Trimmer
Difficulty
Medium
Time
15-30 minutes
Tools Used
Screwdriver, Pliers, Wrench Set
Parts Used
installed new spring, put shears back together
Did you find this story helpful?
Thanks for voting and helping fellow customers!
starter rewind spring broke and rope starter was replaced to prevent from getting damaged
Sergio - May 9, 2021
Tool Type
Trimmer
Difficulty
Easy
Time
Less than 15 minutes
Tools Used
Screwdriver, Pliers, hex tool
i followed the instructions just like in the video , the instructions were very easy to follow and simple job to do
i will definitely recommend this site
i will definitely recommend this site
Did you find this story helpful?
Thanks for voting and helping fellow customers!
Recoil Rewind Spring Broke
Doug - January 16, 2020
Tool Type
Blower
Difficulty
Medium
Time
1-2 hours
Tools Used
Screwdriver
Parts Used
Disassembled
Watch Videos (could not find one on the internet for my model)
Trial & Error
Success (1-2 hours total)
As always the first time doing a repair takes the longest. In the future I would just buy the whole mechanism (which I did but did not use) next time. Saves time and energy.
Watch Videos (could not find one on the internet for my model)
Trial & Error
Success (1-2 hours total)
As always the first time doing a repair takes the longest. In the future I would just buy the whole mechanism (which I did but did not use) next time. Saves time and energy.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
starter spring broke
Mark - December 4, 2019
Tool Type
Trimmer
Difficulty
Easy
Time
15-30 minutes
Tools Used
Screwdriver, Pliers, Wrench Set
Parts Used
1. removed the head cover
2. removed the starter spool
3. removed the broken spring
4. replaced the spring and reinstalled all the parts
2. removed the starter spool
3. removed the broken spring
4. replaced the spring and reinstalled all the parts
Did you find this story helpful?
Thanks for voting and helping fellow customers!
Weed eater starter spring
Mark - August 30, 2019
Tool Type
Trimmer
Difficulty
Easy
Time
15-30 minutes
Tools Used
Screwdriver, Pliers, Nutdriver
removed starter, replaced spring, string and guide
Did you find this story helpful?
Thanks for voting and helping fellow customers!
Broken Recoil Starter Spring
Dennis - July 7, 2017
👍 2 of 5 people found this instruction helpful
Tool Type
Trimmer
Difficulty
Easy
Time
Less than 15 minutes
Tools Used
Screwdriver, Pliers, Allen Socket Bit
Parts Used
-Removed the 4 cap head screws holding the recoil starter assembly to the motor.
-Removed the screw holding the rope pulley in place.
-With a pair of needle nose pliers I grabbed the old spring and lifted it out.
-I lined up the new spring with the catch lug being careful the spring was the right
direction.
-With my fingers spread out over the spring that is still in the retainer ring, I carefully
used a screwdriver to push the new spring from the retaining ring into position.
-It's pretty much re-assembly in reverse order.
-Removed the screw holding the rope pulley in place.
-With a pair of needle nose pliers I grabbed the old spring and lifted it out.
-I lined up the new spring with the catch lug being careful the spring was the right
direction.
-With my fingers spread out over the spring that is still in the retainer ring, I carefully
used a screwdriver to push the new spring from the retaining ring into position.
-It's pretty much re-assembly in reverse order.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
Recoil spring broke
Felix - August 16, 2016
👍 1 of 3 people found this instruction helpful
Tool Type
Blower
Difficulty
Medium
Time
15-30 minutes
Tools Used
Screwdriver, Allen wrench set
Parts Used
Replaced recoil spring. Blower fixed. That little spring packs a lot of force! Be aware.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
Echo leaf blower spring broke.
Samuel - September 17, 2017
👍 1 of 5 people found this instruction helpful
Tool Type
Blower
Difficulty
Medium
Time
15-30 minutes
Tools Used
Screwdriver, Pliers
Parts Used
1. Removed the recoil assembly from the engine.
2. Removed the rope pulley.
3. Removed the old broken recoil spring.
4. Installed the new recoil spring.
5. Reinstalled the old rope pulley.
6. Put tension on the spring and rewound the rope.
7. Reattached the recoil assembly to the engine.
2. Removed the rope pulley.
3. Removed the old broken recoil spring.
4. Installed the new recoil spring.
5. Reinstalled the old rope pulley.
6. Put tension on the spring and rewound the rope.
7. Reattached the recoil assembly to the engine.
Did you find this story helpful?
Thanks for voting and helping fellow customers!
