How to Replace the Carburetor on a Tiller


Find replacement parts for your Powermate tiller here.   Removing the carburetor

1. Remove the air filter

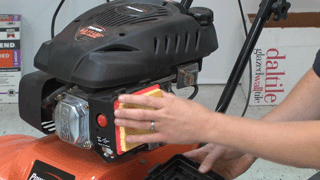

Pull the tabs at the top of the air filter cover to detach it from the air box, then remove the air filter.

2. Remove the air filter base

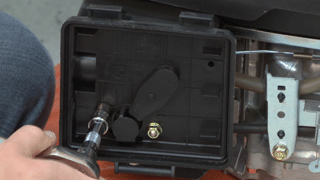

Remove the two nuts using a socket wrench or socket driver and pull the air filter base away from the tiller.

3. Detach the primer line and crank case vent line

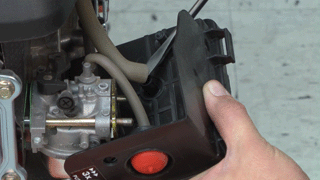

Loosen the hose clamp(s) and use a flat-head screwdriver to pry the primer and crank case vent line off of the carburetor. Once all of the lines are removed, the air filter base can be set aside.

4. Remove the fuel line

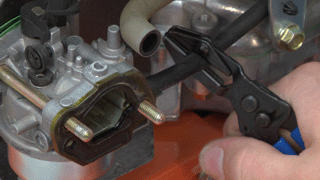

Clamp the fuel line with a fuel line clamp, then pull the fuel line off of the carburetor.

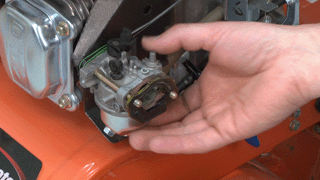

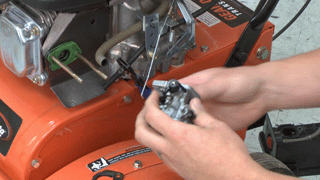

5. Pull the carburetor away from engine

Slide the carburetor and gasket off of the two mounting bolts.

6. Remove the throttle linkage

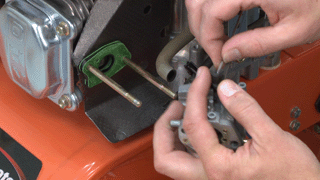

Pull the throttle linkage cable out of the carburetor and set gently aside.


[Back to Top]
  Installing the new carburetor

1. Replace the throttle linkage

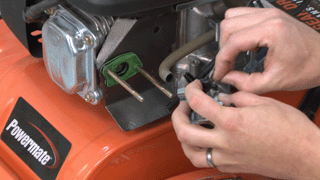

Carefully thread the throttle linkage cable back into the carburetor.

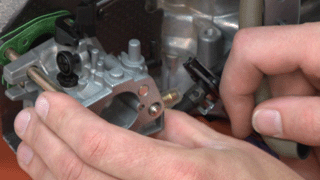

2. Slide the carburetor back onto the mounting bolts

Mount the carburetor back onto the bolts and make sure it rests snugly against the back-rest.

3. Re-install the fuel line and gasket on the carburetor

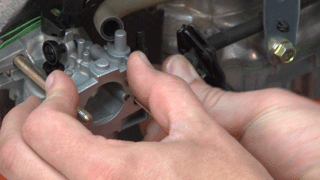

Push the fuel line back onto the carburetor and remove the clamp from the fuel line.  Next, push the carburetor gasket back onto the mounting bolts, into its original position.

4. Reattach primer line and crank case vent line

You're now ready to reinstall the air box.

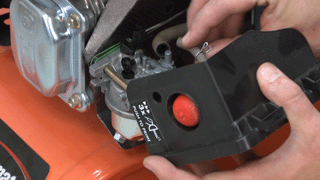

First, reattach the primer and crank case vent lines back onto the carburetor, then slide the hose clamp(s) back onto their grommets.

5. Replace the air filter base

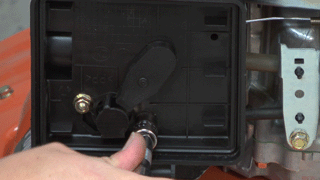

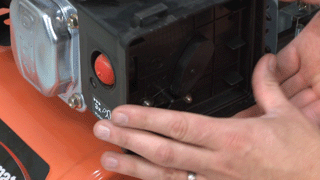

Mount the air filter base back onto the bolts and secure it using the two nuts.

6. Replace the air filter and air filter cover

Push the air filter back into the air filter base and snap the filter cover back onto the filter base.


[Back to Top]
  Conclusion By following the steps outlines above, replacing a carburetor can be performed by anyone in the comfort of their own garage in a matter of minutes.    Don't forget to browse our entire selection of lawn equipment parts.   [Back to Top] What We're About
