Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
The exact part for me
The part was exactly the right fit, easy to replace and does just what it was made for. A bit expensive though.
David - July 17, 2019
Verified Purchase
★★★★★
★★★★★
Easy Repair with video instruction and easy parts search
Excellent new replacements for SkilSaw HD77 Type 17 (plus the cord guard), and I took the saw to the hardware store to be sure I had the Torx wrenches to fit all the bolts. I spent more time cleaning the tool than it took to replace the cord.
Guest - July 23, 2019
Verified Purchase
★★★★★
★★★★★
Just the right part for the job.
Came on time. Correct part.
Wes - August 28, 2019
Verified Purchase
★★★★★
★★★★★
The beginning of a beautiful on going relationship.
This place is amazing. I repair a lot of the equipment here for the apprenticeship and building construction management programs and as most repairs go they only require basic repairs. e Replacement part's are the bee's knees when it comes to inventory. As for the power replacement cord I purchased, Top Quality!
Keith - October 3, 2019
Verified Purchase
★★★★★
★★★★★
Ordering frayed power cord
It was easy to order the part and I received it promptly. I appreciate your efficiency!
Guest - October 5, 2019
Verified Purchase
★★★★★
★★★★★
Skil power cord
Great replacement part. Looks like original.
Guest - January 6, 2020
Verified Purchase
★★★★★
★★★★★
As described
Item as described
Doug - January 16, 2020
Verified Purchase
★★★★★
★★★★★
Quick shipping service
My part was exactly what I needed and received it sooner than expected. Will use this service again for sure.
Guest - March 7, 2020
Verified Purchase
★★★★★
★★★★★
Worked as expected
great part easy to install.
Guest - May 25, 2020
Verified Purchase
★★★★★
★★★★★
no problems
I was told to expect delay of shipping but was surprised when it arrived in a timely manner
Guest - June 28, 2020
Verified Purchase
< Prev
1
2
3
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Remove handle side plate.
2. Remove 3 Screws connecting cord.
3. Remove 2 Screws securing trigger.
4. Removed old cord and installed new cord by replacing the items above.
Did you find this story helpful?
Thank you for voting!
30-year old Skilsaw needed a little maintenance. ereplacementparts were perfect.
Remove the screws from the handle assembly, then unscrew switch from handle and remove the cord clamp. Remove the cord leads from the switch and the ground wire. Discard old cord. Slide the new cord relief onto the new cord. Install the cord leads on the switch , then the ground lead. Attach switch to handle , then put the cord clamp back
... Read more on. Press the handle together. Make sure there are no wires being pinched, then install the handle on to the saw. To replace the brushes. Remove the brush caps with a screwdriver, then remove the old brushes. Install the new brushes, then screw the brush caps back on. Check oil level in the saw and add more if needed.
Read less
Did you find this story helpful?
Thank you for voting!
Armature commutator damaged by abrasive grit, have also done the replacement when the cooling fan shears off the armature
Thoms from Union City, California
4 of 4 peoplefound this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
1. Drain oil from gearbox
2. Remove brushes
3. Remove guide plate
4. Remove large plastic plug from rear of saw
5. Remove nut behind plastic plug with impact driver while holding down while holding down saw blade stop..
6. Remove saw guide plate and front housing.
6. Press or drive armature out of gearb
... Read moreox brearing.
7. Install new bearing on commutator side of new armature using a simple jig to hold the armature.
8. Slide new armature into the gearbox housing.
9. Reinstall nut and carefully tighten with impact driver. This will pull the armature through the gearbox until it stops when the armature shoulder contacts the inner bearing race on the armature side of the gearbox. Take your time with this.
10. Reassemble saw.
11. Refill gearbox with oil.
12. Replace brushes.
Note: I\'ve done this type of replacement a number of times on Skil circular saws without replacing the bearings on the gearbox side and not had any long term problems. But it is likely that Skil recommends replacing the two gearbox bearings as part of the procedure.
Remove one handle half, Remove the cord wires from the switch and the ground wire
Remove the cord clamp. Slide the old cord relief from off of the old cord and slide it on the new cord. Connect the wires from new cord to the switch and the ground wire. Install the cord clamp. Install the handle half.
Remove the screws from the right half of the switch handle
Unscrew the switch
Remove the cord clamp
Disconnect the cord wires from the switch and the ground wire
Remove the old cord
Slide the cord relief on the new cord
Connect the cord wires to the switch and connect the ground wire
Screw the s
... Read morewitch in the handle
Attach the cord clamp
Install the handle half
Install trigger, cord and cord protector on 7-1/4\" Skill mag 77 worm drive saw.
Before starting ensure that saw is unplugged.
1-Remove right side half of saw handle. Inside handle, remove screws that secure cord tail clamp, and trigger, and ground wire. If the cord is to be replaced along with trigger, discard old part
... Read mores. If the old cord is to be reused, remove cord connections from trigger.
2-Install cord tail protector on cord by inserting the wire connectors through the small end of protector. Slide protector toward plus end of cord so about 6 inches of the cord passes through protector. Note-if old cord and cord tail protector is to be used, this step can be skipped.
3-Using appropriate parts secure cord connections to trigger according to diagram that is included with trigger. Note- if this step is not done correctly the saw will not operate and electrical circuit that the saw is connected to will overload, possibly causing damage/ injury.
4-Secure ground to saw body, ensure wires are appropriately positioned so they do not get pinched when the handle case halve is reinstalled. Secure cord with cord clamp and place the end of cord protector into slot behind cord clamp. Align and secure handle case half in place. Be sure not to over torque screws as the plastic parts are susceptible to damage.
First I removed the screws from the handle on my 77HD Skilsaw, then I removed the screws from the strain relief and the switch. I then unscrewed the positive and negative leads from the switch and the ground screw from the body of the saw. Pulled the old cord and cord guard out and replaced with the new ones, replaced the leads on the w
... Read moreire, making sure I routed everything properly, tightened all the mounting screws to the proper torque, put the handle back on and tested the function of the saw. Worked perfectly!
Removed covers for brushes then replaced old brushes with new ones. Removed screws from handle assembly then removed screws holding terminals on old power cord. Replaced old cord with new one and replaced the screws. My vintage Skilsaw 825 worm drive is ready for another 50 years of use!
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
3
Next >
Model Cross Reference
This part works with the following models:

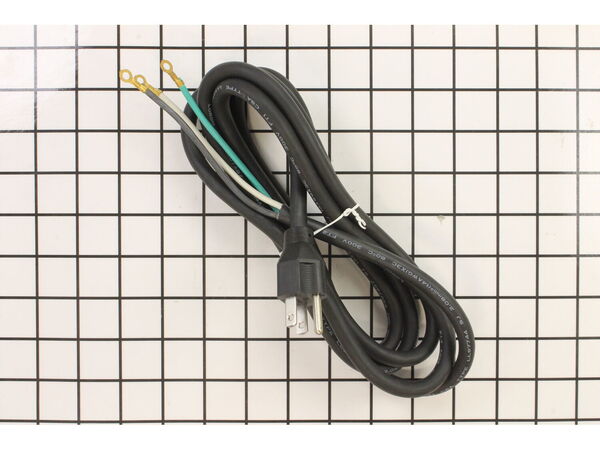

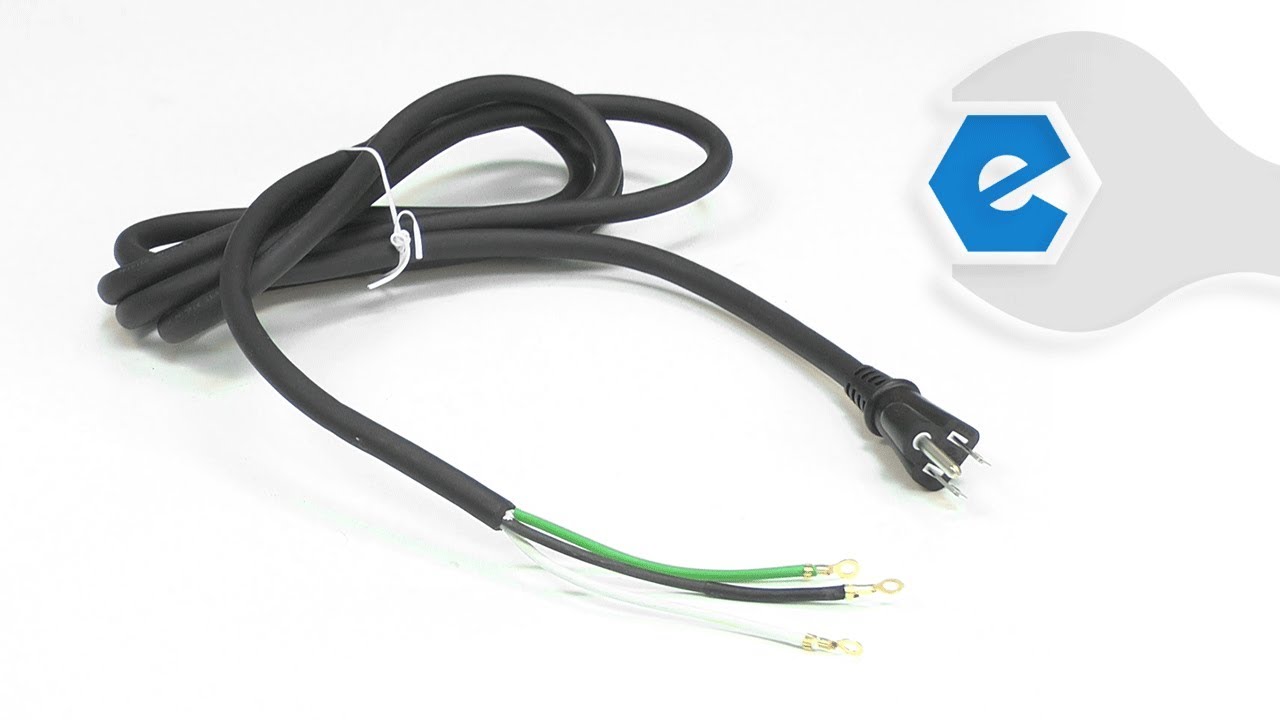

ERP Number: ERP16641215
Manufacturer Part Number: 4810003233
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
