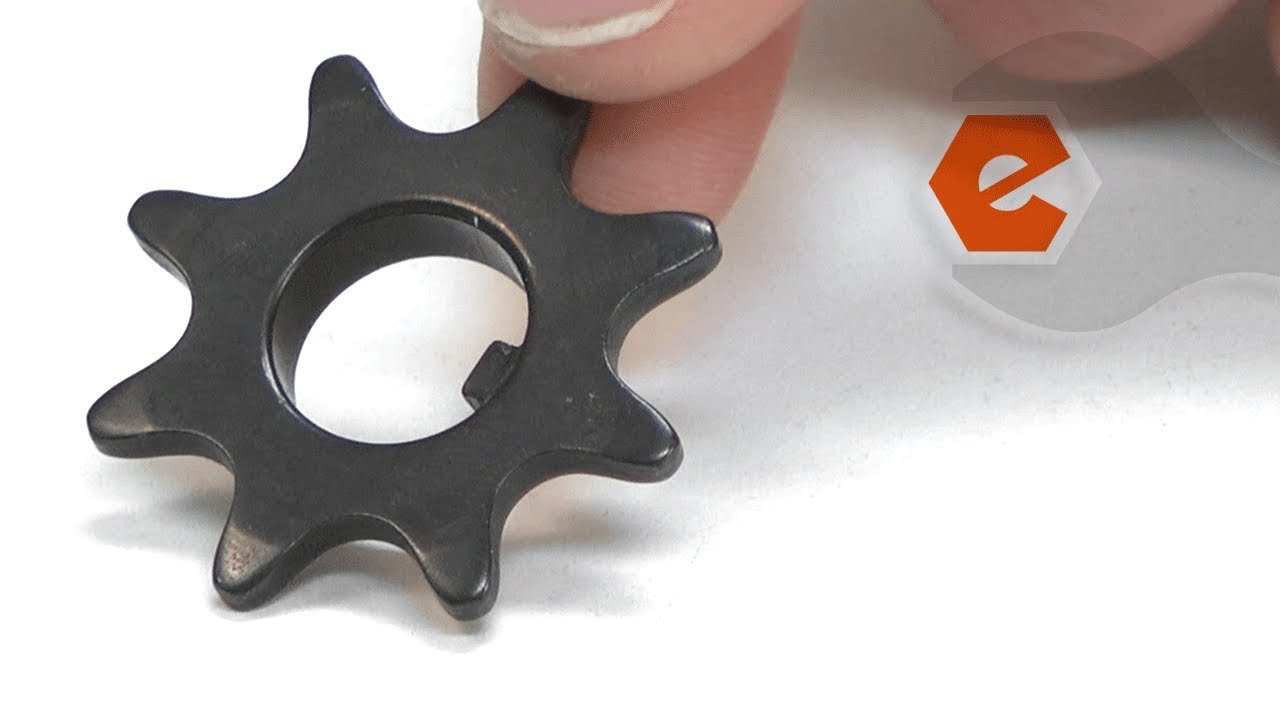

Genuine Dewalt replacement part, this item is sold individually. This is a Drive Sprocket that works in conjunction with a drive chain. It is used on the Dewalt Planers shown below to drive the feed rollers. Depending on the model number you have, as in case of the DW734 uses one. The DW735 and the DW735X use four of this part.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Quick and easy
Just what I needed
Guest - April 24, 2019
Verified Purchase
★★★★★
★★★★★
Easy to install
Fit fine!
Guest - May 23, 2019
Verified Purchase
★★★★★
★★★★★
Perfect fit
My planner is up and running.
Guest - October 17, 2019
Verified Purchase
★★★★★
★★★★★
Great parts
Found the parts was looking for very easy and fast shipping. Will use again for all my parts needs Have let others know that use tools for work and just for home use.
Gary - January 17, 2020
Verified Purchase
★★★★★
★★★★★
Happy Customer
I have an old 13 inch craftsman planer and with the help of a wonderful sales person I was able to find dewalt parts that fit my machine. Both the sprocket and feed roller bearings were an exact match. We looked at dimensions and scale photos to see if there was a dewalt part that was similar. When the parts arrived I discovered that no modification was necessary. Perfect. Thank You. The craftsman parts are no longer available by the way.
Guest - January 30, 2020
Verified Purchase
★★★★★
★★★★★
Best place for parts
Best place to get parts. Not only did they have my parts at a great price, there was a video on the process. I also got the parts very quickly!
Guest - May 9, 2020
Verified Purchase
★★★★★
★★★★★
Easy fix
Back together and running like new
Guest - November 11, 2020
Verified Purchase
★★★★★
★★★★★
Sprocket
Works great
Rocky - March 18, 2021
Verified Purchase
★★★★★
★★★★★
On time and correct
Thanks for the quick and accurate service! The sprockets fixed the problem right away!
Guest - August 16, 2021
Verified Purchase
★★★★★
★★★★★
Customer friendly, easy to talk to!
It arrived quickly and in great condition
Guest - November 10, 2021
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed the side chain cover with Allen wrench. Removed snap ring from cog drive shaft. Installed new cog, replaced snap ring, installed cover. This is a simple job that can be accomplished by just about anyone with basic mechanical skills and a few tools. The only special tool needed is snap ring pliers.
I had to remove both sprockets and put both back on at the same time in order to get the chain back on. The manual did not tell me that. It said take it to a dealer. After I figured it out, it was a simple repair. If the manual had stated how to replace the broken sprocket, I could have done the entire repair in 15 minutes.
1. Removed side covers to expose the sprockets
2. Found that with all four sprockets off that the one roller was hard turning and the other was stuck
3. Removed both rollers replaced one roller block that frozen solid.
4. Cleaned and grease roller blocks. PS check the rollers first, before you think it might be the ge
... Read morear box!
Read less
Did you find this story helpful?
Thank you for voting!
Feed rollers not feeding - broken sprocket and springs
DW735 planer not feeding
Parts used:
one new feed roller sprocket (5140010-81),
one new retaining ring (5140010-80), (order two in case one pops off the snap ring plier)
two new springs (5140011-04).
Suggestion: to know how many parts to order, remove both black side covers to determine if one or more bro
... Read moreken sprockets are causing your rollers not to feed. If all is intact, then you have a different cause for the rollers not feeding.
1. Unscrew and remove both black side covers and the yellow top cover that gives access to the dust shroud and blades. Remove the height adjustment wheel to reach the screws securing that side cover. Behind each side cover are two feed roller sprockets, a short chain running between the sprockets, a lever with a wheel on one end that has the purpose of pressing against the chain to keep the chain tracking properly, and a spring on the other end of the lever. In one side compartment, the spring is attached to a horizontal post, and in the other compartment the spring fits into a slot in the metal plate above.
2. On each side, one sprocket is held on the feed roller shaft with a screw and washer, but the other sprocket is held on the shaft with a retaining ring. This retaining ring is round with two tiny holes at each end - it is NOT the \'E\" ring retainer! Remove the retaining rings with a snap ring plyer that has nubs small enough to fit into these tiny holes.
3. After I opened both sides of the planer, of the four sprockets, two on each side, one sprocket was broken into three pieces. The others were not damaged nor particularly worn. I also found in each side one broken spring and one sprung spring.
4. I removed the retaining ring and the broken sprocket, then slid a new sprocket onto the shaft, followed by a new retaining ring. Be sure to seat the ring firmly into the groove on the shaft.
5. I replaced the broken springs on each side. NOTE: before replacing the springs, seat the lever wheel on the chains as follows: on the side with the height adjustment wheel, the lever wheel should track along the TOP of the chain; on the other side, the wheel should track BENEATH the chain.
6. Replace side covers. change or flip blades to a sharper side, if necessary; wax the feed table so lumber will be drawn across the table more easily with less friction, thereby reducing stress on the roller parts.
7. Get a test board, grab your ear bobs, flip the switch on, then enjoy watching your newly repaired planer suck in the board then spit a thinner version out the other end. DONE! And so gratifying to repair it myself.
I found that a sprocket on the side of my Dewalt planer was broken. Easy fix remove retaining ring replace sprocket - washer and retaining ring, tricky part is getting all back together with chain drive.
Removed the cover and replaced the sprocket. The retaining ring came off with retaining ring pliers. Overall about as easy as it gets. Bought a second sprocket for the future just in case.
Remove cover
Removed retaining ring
Remove broken sprocket and the chain
Slide on sprocket and install chain
Install the retaining ring on
Install cover
Did you find this story helpful?
Thank you for voting!
Forward drive roller would not feed (roll) plank into planer
1. Used Dewalt wrench to take side off.
2. Loosened the tension arm and removed broken Sprocket.
3. Sprocket is keyed so it just slid on no problem.
4. Let tension arm go.
5. Replaced side cover and that is it.
