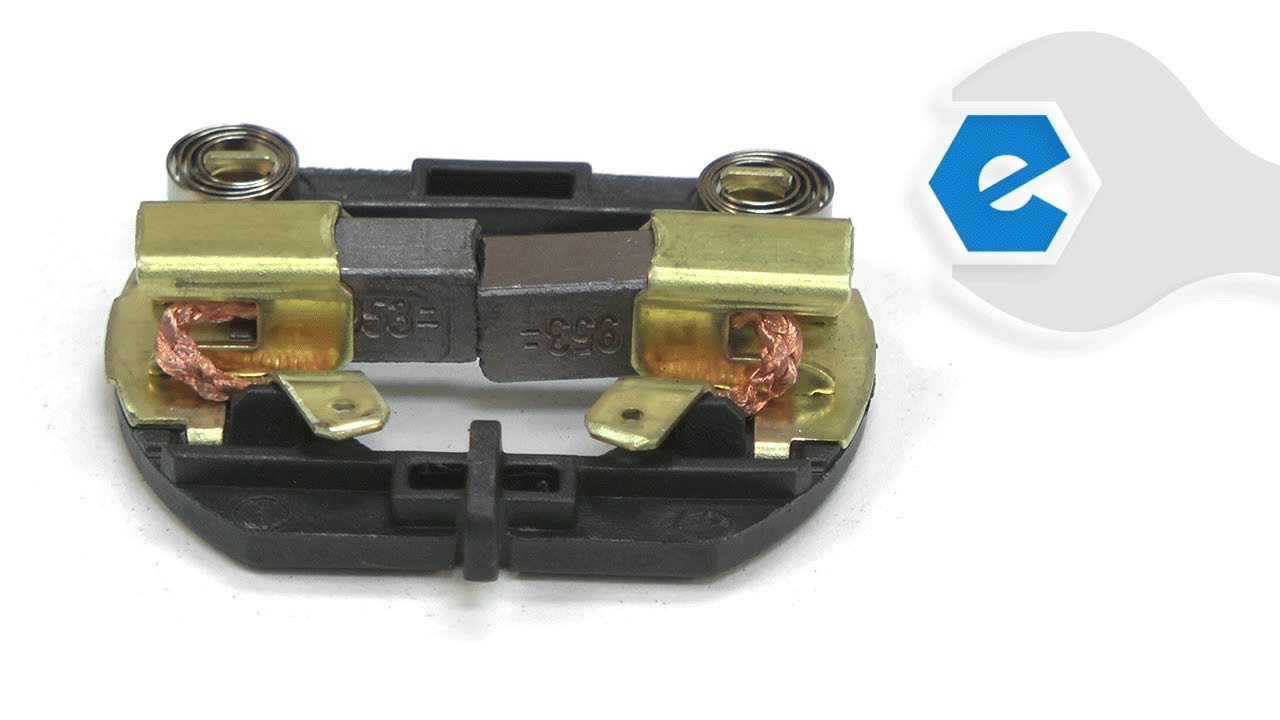

This is a genuine DeWalt replacement part, sold individually. Includes 2 brushes and holder. Worn brushes are a common causes of intermittent motor function, reduced electric braking and reduced motor power. A worn-out brush will often be worn down near to the wire lead and can be cracked, pitted, or burned. It is recommended to take note of how the wire leads connect to the assembly, and reconnect the same way. Compatible with the tools listed below.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy fix.
Easy replacement and it’s like having a new impact again. Just make sure you don’t mix up it will run opposite to the switch.
Guest - July 30, 2019
Verified Purchase
★★★★★
★★★★★
saved me money from having to buy new 20 volt inpack
received very quick . exact what i ordered
Guest - August 12, 2019
Verified Purchase
★★★★★
★★★★★
Easy Repair,
arrived on time and in good condition , and everything working again.
Iglobal - September 12, 2019
Verified Purchase
★★★★★
★★★★★
Looks and works perfect
This is a great prized unit and it was shipped fast. Its cheaper to build my unit with the parts yall carry than to buy a new one.
Kenny - November 11, 2019
Verified Purchase
★★★★★
★★★★★
You always have the right parts
prefect fit. Great parts fast shipping. Never had a problem with parts from you. Thanks Jim
Jim - November 4, 2020
Verified Purchase
★★★★★
★★★★★
The suggested part was the fix and easy to install.
A small suggested part saved me from buying another expensive tool.
Lawton - July 26, 2023
Verified Purchase
★★★★★
★★★★★
Great part, terrable service
This was a factory DeWalt part and it was excellent. However the parts took over 1 1/2 weeks to arrive and that is not acceptable. I had to call and was told the parts were ready to be shipped but were sitting on a pallet. This and other parts were to repair customer's tools and my customers were getting upset over the slow service which reflects badly on me. There are many other places to purchase parts and unless I am assured this will not happen again I will buy my parts elsewhere.
Guest - October 30, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Pull the case apart disconnect wires from brush assy, replace brush assy attach wires.
Pop the C clip remove the washer, sleeve and spring. The ball is gone by now. replace ball, spring, washer and C clip. I take the opportunity while appart to clean the inside of the case of old dirt and grease. I re grease the gear assy in the nos
... Read moree cone.
Removed the seven screws on the one side of the impact driver.
Carefully pried up on cover.
Disconnected the two wire leads to brush and holder assembly.
Carefully pried up on impact and brush assembly at the same time together.
Slide off brush and holder assembly and hold open new copper brushes and slide over arm
... Read moreature and reverse steps on reassembly.
1. Remove all screws from the body of the driver
2. Remove one side cover from the driver.
3. Remove motor/ transmission an brush assembly as one unit. Note alignment of electric motor parts.
4. Unplug remove old brush assembly and reinstall new brush assembly.
4a. If ou are replacing the light ring, now is the tim
... Read moree to unplug and remove and replace it.
5. Put brush assembly, motor and transmission together and put back into body of driver.
6.Put other side of driver on and reinstall screws.
Put battery in and test the fix.
1. Take the screws out.
2. Pry the two halves apart.
3. Pull the wires off the brush holder. Note which color wire goes where.
4. Disconnect the wires for the lights.
5. Pull the brush holder, ring, armature, and gear housing out but note how the ring is sitting in the housing.
6. Install the new ring, b
... Read morerush holder, and armature.
7. Install the ring in the same orientation as the old magnet ring.
8. Connect the lights
9. Connect the wires the the brush holder.
10. Put the two halves back together.
11. Put the screws back in and tighten.
Take out 8 screws. Separate drill housing. Disconnect 2 wires, remove old brushes. Install new brushes, connect 2 wires. Put drill housing back together, install 8 screws
Remove screws from housing, separate housings, Take a picture of where the internal parts are located. Remove the brush assembly and the armature. Install the new armature. Pull back the the brush springs place them on the brush holder, and pull back brushes to install the new brush assembly. Assemble in reverse order.
Dropped impact in the mud than the motor started sparking when you press the trigger so thought motor was bad replaced brushes now it works like brand new
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

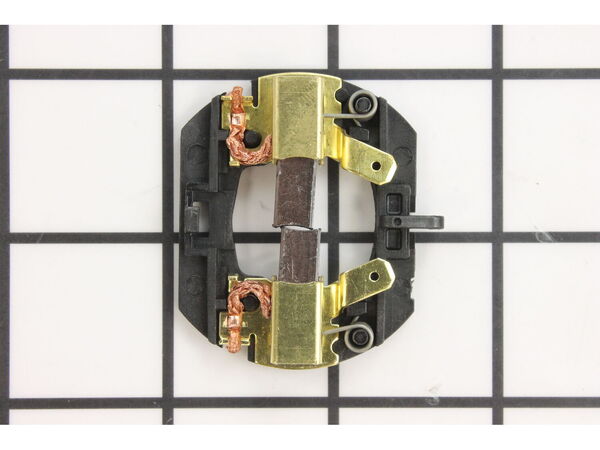

_WW_1.gif "Part Location Diagram of N093746 DeWALT Carbon Brush And Holder")
