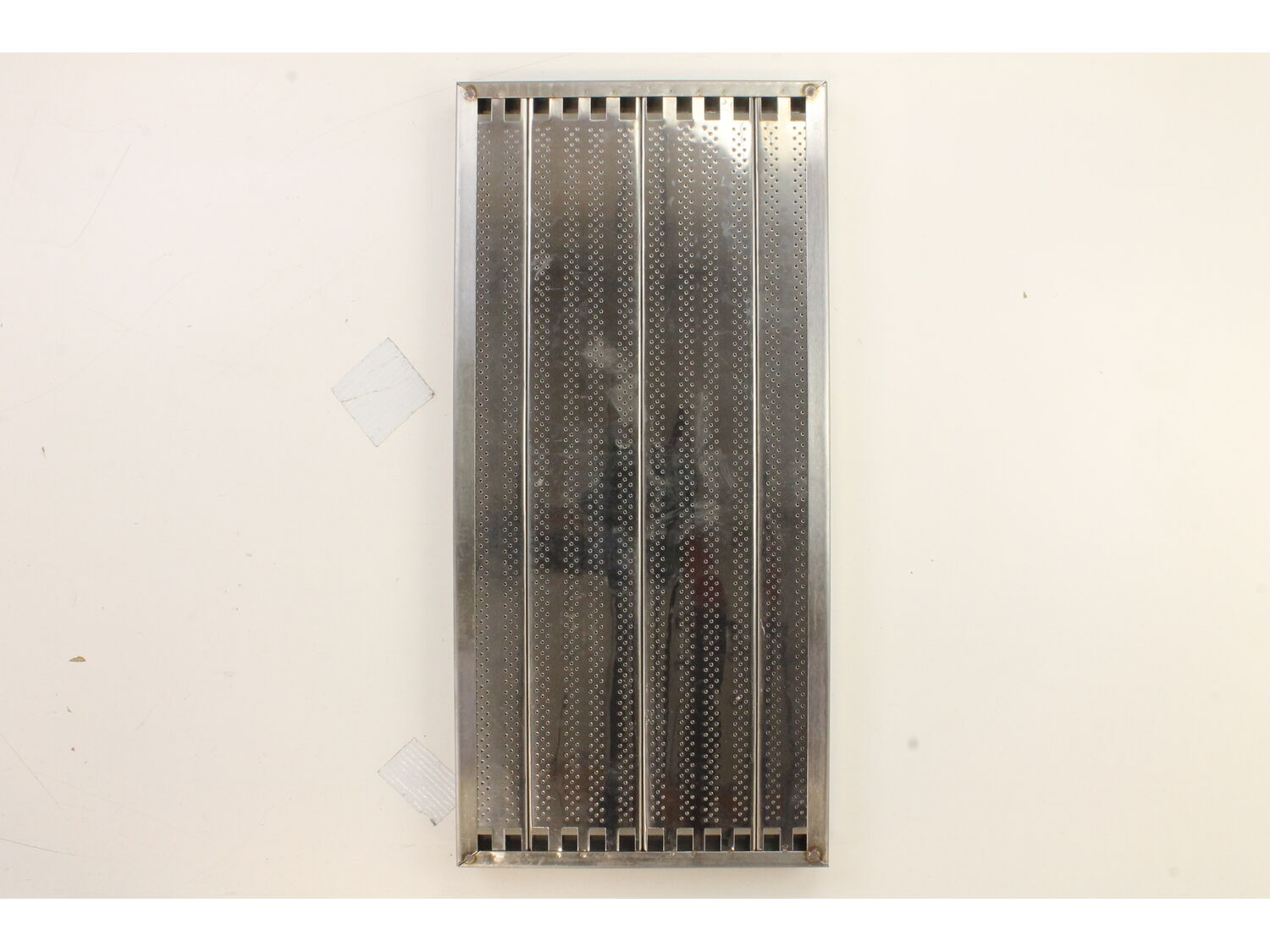

Genuine Char-Broil replacement part, this item is sold individually. The Lower Grate Housing is placed underneath the 3486613 Cooking Grates. It helps distribute the heat evenly on the Grill. Over time it will collect food particles and grease from the Cooking Grates. It can be removed and cleaned with soap and water. Size: 18.4" L X 8.7" W
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
HI Larry, Thank you for the question. The Infrared Cooking Grate is listed as Part Number:3486613. This item is sold individually and two are required for this model. Other then the Grate Housing Tray Part Number 3488898 that sits under the Cooking Grate, no other grates are listed. We hope this helps!
Hello Matt, Thank you for your inquiry. The grate housing trays for your model are part# 3488898. We hope this helps.
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
Old grates had to be replaced
Cindy from Atlantic Beach, Florida
Lower grate rusted out.
William from PLain City, Ohio
The plate was rusted out
Lyndon from Columbia, Missouri
Original lower grate housing was rusted
ed from janesville, Wisconsin
After about 5 years, the grille needed some replacement parts.
Rod from Jacksonville, Florida
Rusted after 10 years of use.
judith from RANCHO CORDOVA, California
Rusted out
Bayne from PAMPLICO, South Carolina
The grill housing trays were starting to disintegrate.
Maurice from LORAIN, Ohio
Grates rusted on old grill
William from Erie, Pennsylvania
| Brand | Model Number | Description |
|---|---|---|
| Char-Broil | 463243812 | Grill - Tru-Infrared Gas Grill |
| Char-Broil | 463243911 | Grill - Quantum Infrared Urban Grill |
| Char-Broil | 463246909 | Grill - Commercial Series Infrared Urban Grill |
| Char-Broil | 463246910 | Grill - Infared Urban Grill |
| Char-Broil | 463247109 | Grill - Commercial Series 500 Three-Burner Infrared Grill |
| Char-Broil | 463247412 | Grill - Tru-Infrared Gas Grill |
| Char-Broil | 463257110 | Grill - Three-Burner Infared Grill |
| Char-Broil | 463257111 | Grill - 3-Burner Infrared Grill |
| Char-Broil | 463270610 | Grill - Quantum Infrared Urban Grill |
| Char-Broil | 463270909 | Grill - Infrared 3-Burner Dual Fuel Grill |
| Char-Broil | 463270910 | Grill - Quantum Infrared Three-Burner Dual Fuel Grill |
| Char-Broil | 463270911 | Grill - 3-Burner Grill with Sideburner |
| Char-Broil | 463271009 | Grill - Quantum Infrared Grill |
| Char-Broil | 465257110 | Grill |
| Char-Broil | 466257110 | Grill - Commercial Series Three-Burner Infrared Grill |
| Char-Broil | 466257111 | Grill - Commercial Series |
| Char-Broil | 466270611 | Grill - Quantum Infrared Urban Grill |
| Char-Broil | 466270909 | Grill - Quantum Three-Burner Dual Fuel Grill |
