Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy ordering, fast shipping, great part!!!
Great communication/updates throughout the ordering/shipping process. Shipped quickly. Our shop manager said that the part is perfect.
Shannon - September 24, 2019
Verified Purchase
★★★★★
★★★★★
Quick delivery and a fair price after other vendor failed to deliver
The part was a direct replacement of the switch on my drill press. I had ordered thru another source and received no feedback for two months after multiple requests for a delivery update. I finally had to cancel thru my credit card. eReplacement Parts came thru again.
Tom - December 28, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Drill Press Switch Replacement.
(Disconnect power cord from power outlet)
1. Removed the switch plate by taking out three 3 mm Allen screws,
2. Disconnect the spade connection on the back of the control module (CM). This unit controls the LED lights, laser and RPM display. (If needed take a picture or draw a digram of t
... Read morehe wire connectors.
3. Remove the 4 black screws holding the CM to the cover & gently remove the unit. The RPM display is pressed onto the cover.
4. Disconnect wires on the power switch by removing the four treminal screws. Take note of the wires that go to the motor and the power leads from the CM. The CM side of the switch has little white wires onto the switch to power LED indicator on the switch button.These connections are ring terminals so the screws must be completely removed.
5. The cover plate and switch should now be completely untethered.
6. If you did not purchase a new label, remove the cover label from the old unit and attach it to the new one. The label wraps over the right side of the cover.
7. Install the CM by pushing it gently into the cover from the back. Secure with the 4 small black screws.
8. Reconnect the power switch by reconnect the ring terminals wires going to the motor and jumper wires to the CM. On the switch be sure that black or white wires are parallel to each other.
9. Connect the jumper wires to the CM: white is on the top (GÇö Horizontal) and black is on the side ( l Vertical) of the circuit board. Be sure the Circuit boards on the CM is squarrely on the standoff and all connectors are snug
10. With all wires connected install the switch unit back into the face plate. The button labelGÇÖs right side fits between the cover and drill press housing. So slide the right side in 1st.
Note:
A. Both the table lighting LEDS must be conncted before they work. If either is not connected none work.
12. Before securing the switch unit with the three allen screws.
Plug it in and give it a test.
13. If all is ok lock it in.
Complete
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP19189467
Manufacturer Part Number: PM9-PM2800B-092
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

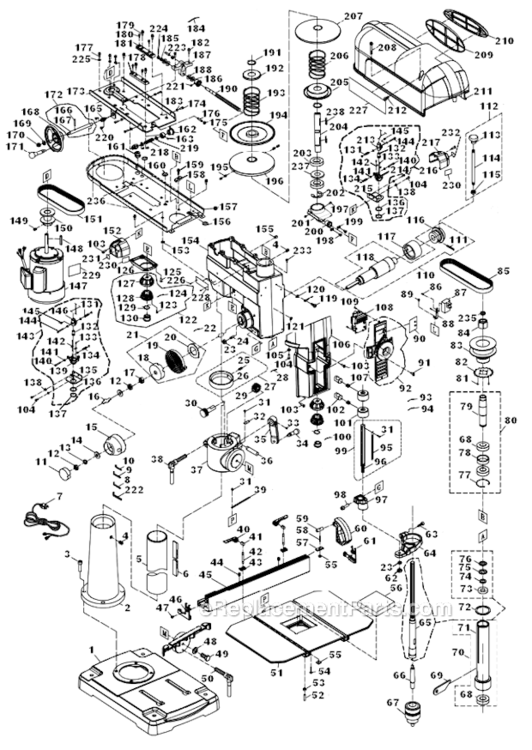

_WW_1.gif "Part Location Diagram of PM9-PM2800B-092 Powermatic Push-pull Type Switch Assembly")
_WW_1.gif "Part Location Diagram of PM9-PM2800B-092 Powermatic Push-pull Type Switch Assembly")
